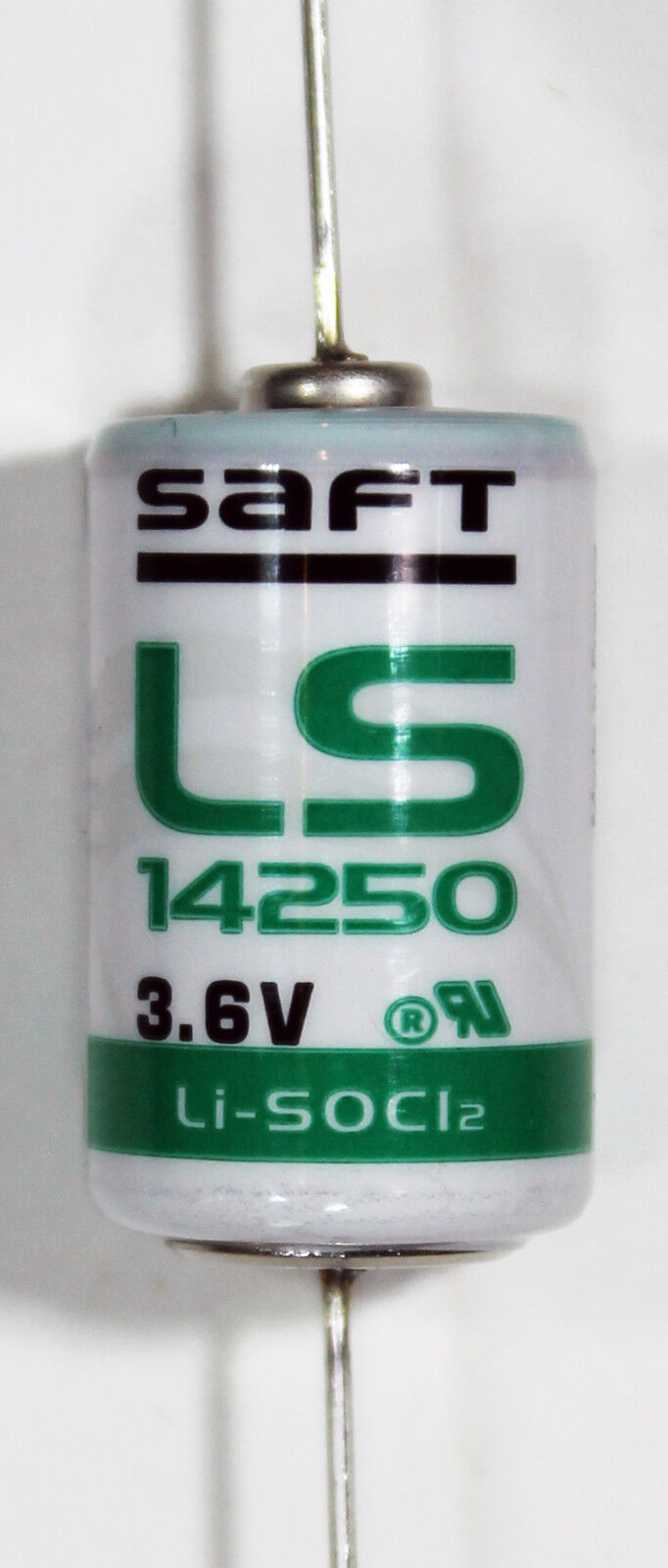

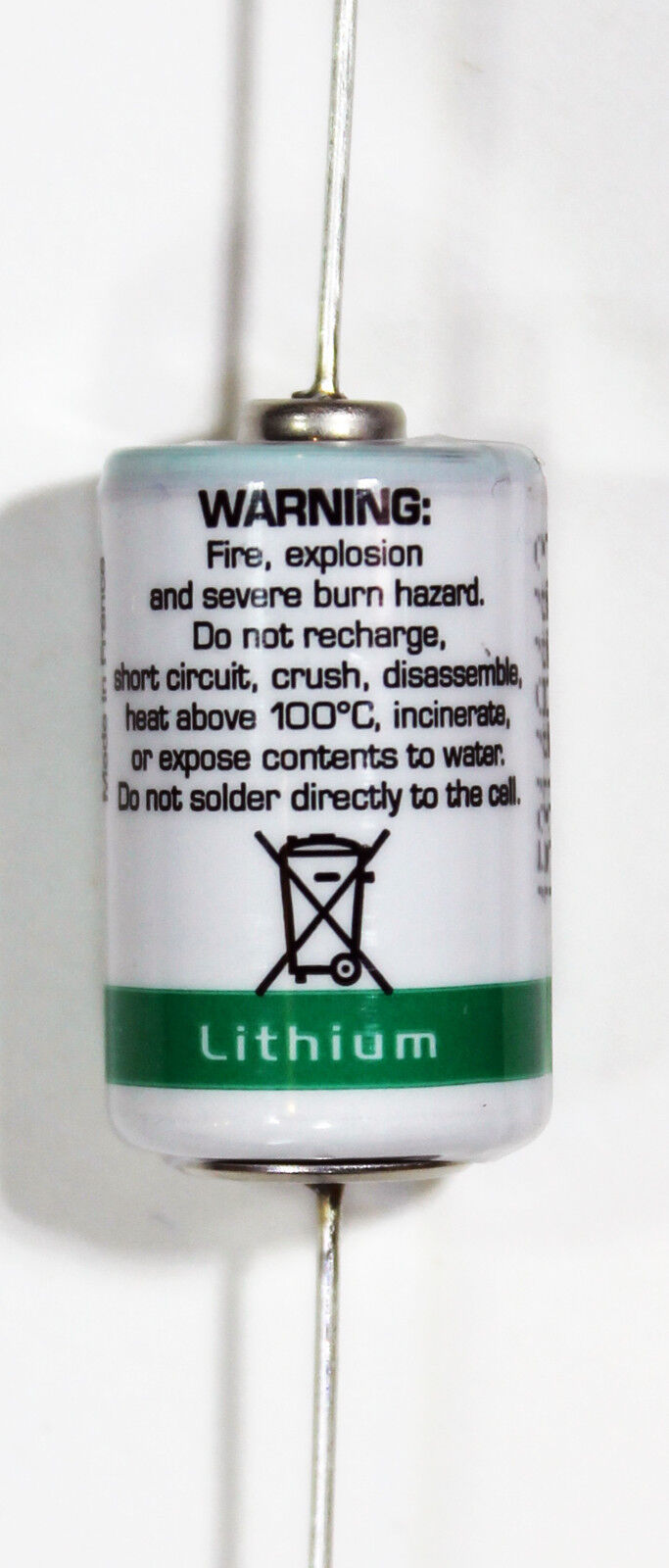

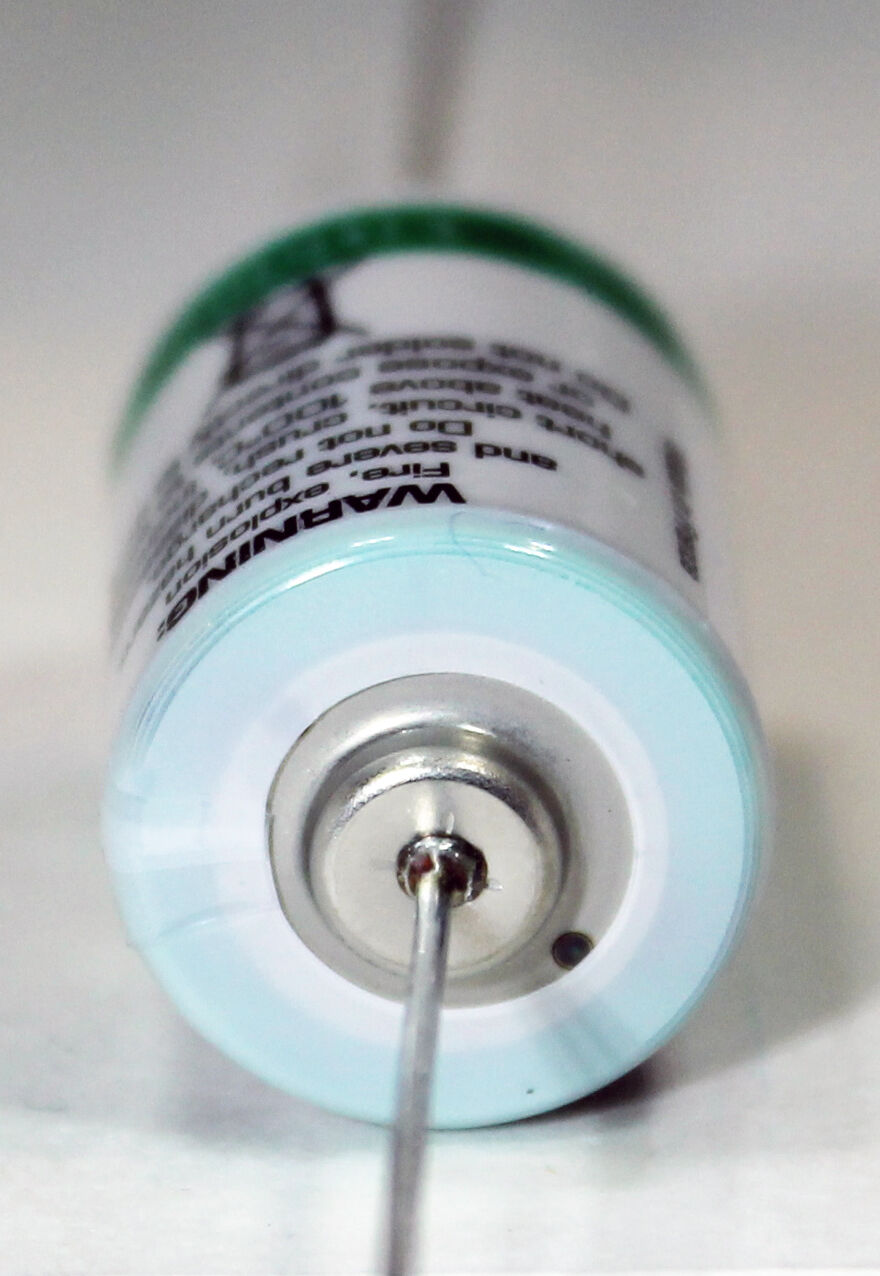

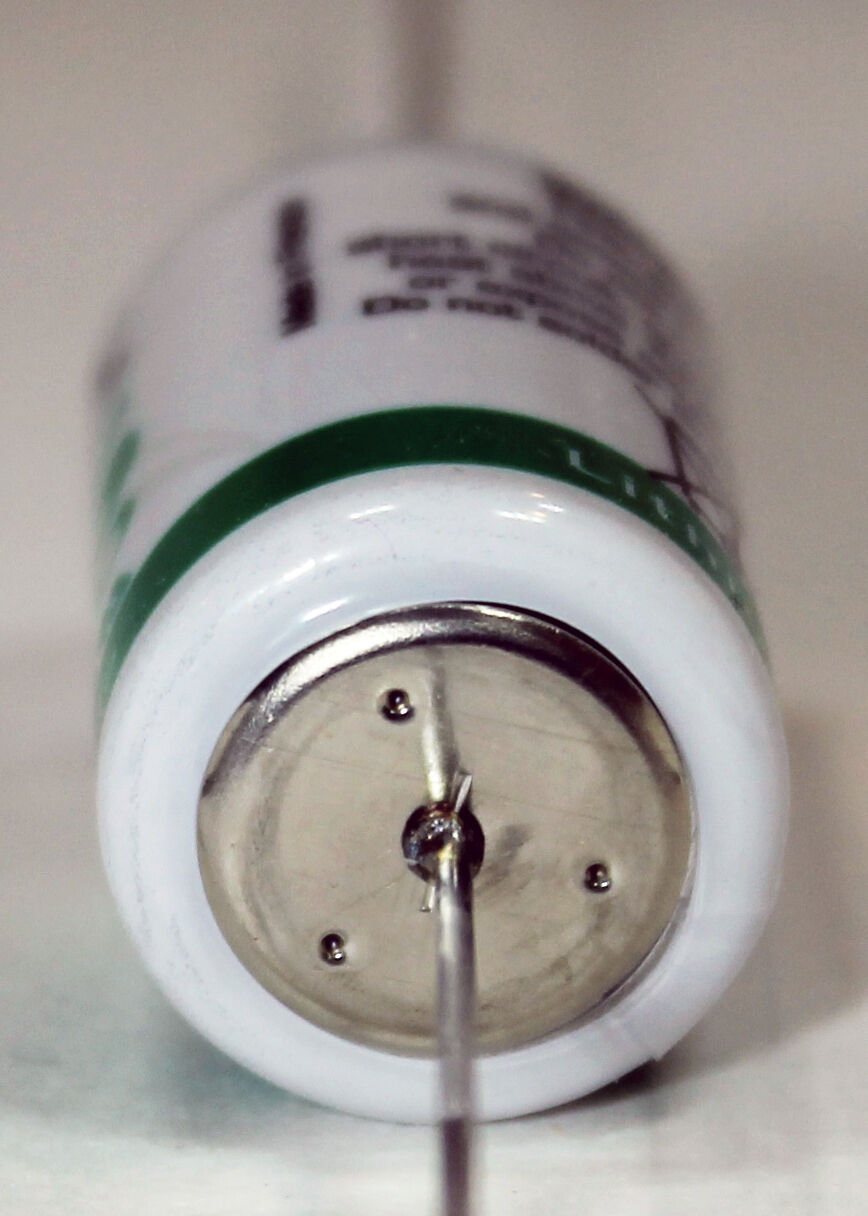

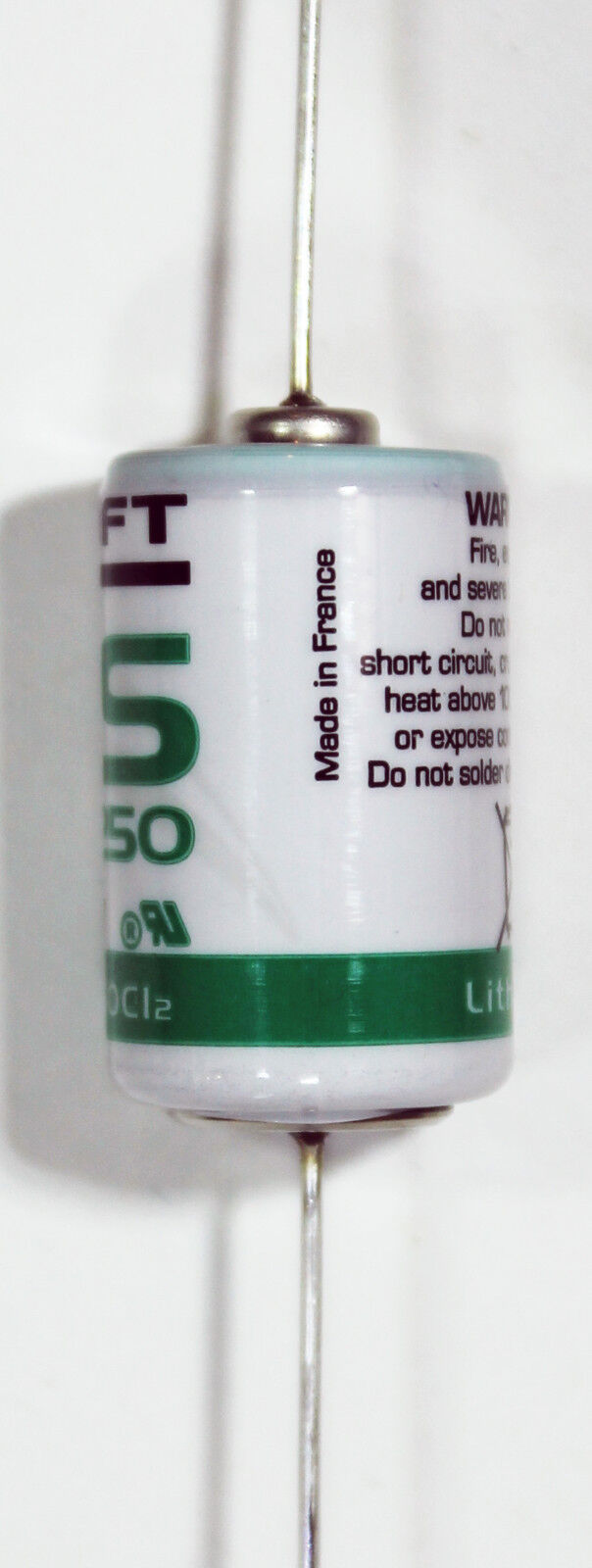

1PC Saft LS14250AX 1/2 AA Size 3.6V Li-SOCl2 Lithium-Thionyl Chloride with Lead

Regular price $12.49 USD
Regular price Sale price $12.49 USD



  • High voltage response, stableduring most of the lifetime of the application
  • Wide operating temperature
  • range (- 60°C/+ 85°C)
  • Low self-discharge rate(less than 1 % per year of storage at + 20°C)
  • Easy integration into compactsystems
  • Superior resistance to atmospheric corrosion

Key features

  • Stainless steel container and end caps(low magnetic signature)
  • Hermetic glass-to-metal sealing
  • Non-flammable electrolyte
  • Compliant with IEC 60086-4 safety standard and IEC 60079-11 intrinsic safety standard (class T4 assignment)
  •  Underwriters Laboratories (UL) Component Recognition

 Main applications

  • Utility metering
  • Automatic meter reading
  • Alarms and security devices
  • Tollgate systems
  • Memory back-up
  • Tracking systems
  • Automotive electronics
  • Professional electronics

Electrical characteristics

(typical values relative to cells stored for one year or less at + 30°C max.)

Nominal capacity   1.20 Ah(at 1 mA + 20°C 2.0 V cut-off. The capacity restored by the cell varies according to current drain, temperature and cut-off)

Open circuit voltage (at + 20°C) 3.67 VNominal voltage (at 0.1 mA + 20°C) 3.6 V

Nominal energy     4.32 Wh

Pulse capability: Typically up to 100 mA

(100 mA/0.1 second pulses, drained every 2 mn at + 20°C from

undischarged cells with 10 µA base current, yield voltage readings above

3.0 V. The readings may vary according to the pulse characteristics, the

temperature, and the cell’s previous history. Fitting the cell with a capacitor

may be recommended in severe conditions. Consult Saft)

Maximum recommended continuous current 35 mA

(Higher currents are possible, consult Saft)

Storage (recommended) + 30°C (+ 86°F) max

(for more severe conditions, consult Saft)

Operating temperature range - 60°C/+ 85°C

(Operation above ambient T may lead to reduced capacity and (- 76°F/+ 185°F)lower voltage readings at the beginning of pulses.


Physical characteristics

Diameter (max)   14.55 mm (0.57 in)

Height (max)   25.15 mm (0.99 in)

Typical weight   8.9 g (0.3 oz)

Li metal content   approx. 0.3 g
